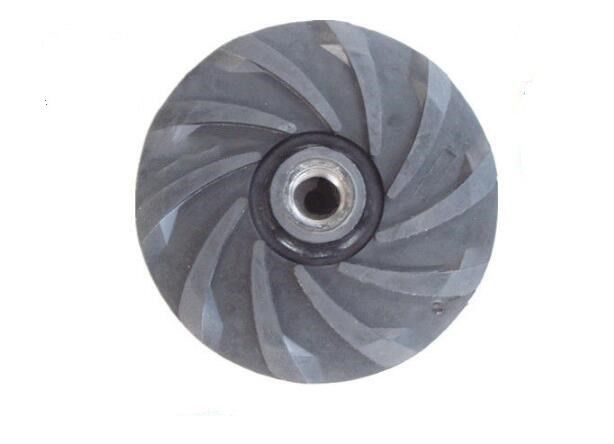

Slurry Pump Parts
>
|
| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
| Document | Product Brochure PDF |
Main material parts
The materials brand of A05 is KmTBCr26,used for higher wearcondition with PH between 5 and 12.
A49 materials is used lower PH conditions especially for flue gas. It also can be used for lower-sour condition and desulfuration installation with PH not be less than 4.
A05 and A49 are high-chrome alloy castings.
Main applications :
This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
| AH(R) | L(R), M | HH | SP(R) | G | AF Series |
| 1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-AH(R) | 350S-L | 6S-H | 14/12T-G | ||
| 8/6R-AH(R) | 400ST-L | 8/6S-H | 16/14 G-G | ||
| 10/8F-AH(R) | 450ST-L | 8/6X-H | 16/14TU-GH | ||
| 10/8X-AH(R) | 10/8 E-M | 6S-HP | 16/14H-GH | ||
| 12/10ST-AH(R) | 10/8 R-M | 8/6S-HP | 18/16G-G | ||
| 14/12ST-AH(R) | 8/6X-HP | 18/16TU-GH | |||
| 16/14TU-AH(R) | |||||
| 20/18G(TU)-AH(R) |
