Slurry Pump Parts
>
|
| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
| Document | Product Brochure PDF |
Features:
wear resistance /abrasion resistance
long life service spare parts
High efficiency and low power consumption
Short delivery
ISO9001:2008 passed
Main applications :
This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
| AH(R) | L(R), M | HH | SP(R) | G | AF Series |
| 1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-AH(R) | 350S-L | 6S-H | 14/12T-G | ||
| 8/6R-AH(R) | 400ST-L | 8/6S-H | 16/14 G-G | ||
| 10/8F-AH(R) | 450ST-L | 8/6X-H | 16/14TU-GH | ||
| 10/8X-AH(R) | 10/8 E-M | 6S-HP | 16/14H-GH | ||
| 12/10ST-AH(R) | 10/8 R-M | 8/6S-HP | 18/16G-G | ||
| 14/12ST-AH(R) | 8/6X-HP | 18/16TU-GH | |||
| 16/14TU-AH(R) | |||||
| 20/18G(TU)-AH(R) |
Warma slurry pump parts code:
-tell me the standard code no .we can quote you price immediately :
OEM part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,
Structure of slurry pump
| No. | Name | Material |
| 1 | Impeller | High-chrome alloy |
| Natural Rubber | ||

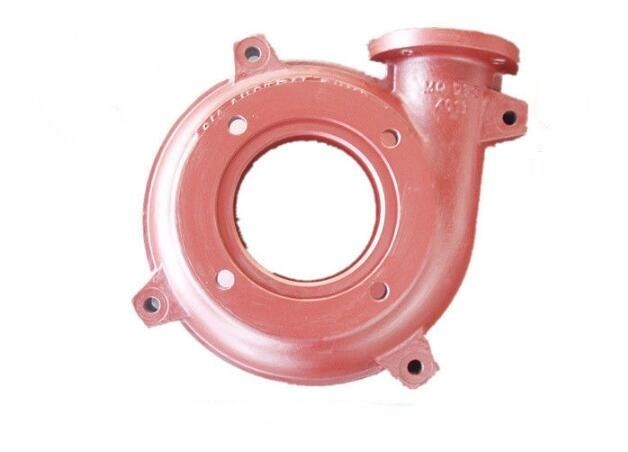

| 2 | Volute casing | High-chrome alloy |
| 3 | Front liner plate | High-chrome alloy |
| Natural Rubber | ||
| 4 | Rear liner plate | High-chrome alloy |
| Natural Rubber | ||
| 5 | Liner | High-chrome alloy |
| 6 | Expeller | High-chrome alloy |
| 7 | Shaft sleeve | 3Cr13 |
| 8 | Water-seal ring | High-chrome alloy |
| 9 | Shaft | 45#steel quenching and high temprature tempering |
| 10 | Bearing housing | Gray Iron |
| 11 | Expeller ring | High-chrome alloy |
| Natural Rubber | ||
| 12 | Front casing | Gray iron or Nodular cast iron |
| 13 | Rear casing | Gray iron or Nodular cast iron |
| 14 | Base | Gray Iron |
| 15 | Support | QT500-7 |
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
