horizontal high pressure centrifugal pump

Corrosion Resistant Horizontal Single Stage Centrifugal Pump For Acid And Alkali

Specification Data

Diameter: 200mm~470mm

Capacity: 8 ~ 800 m³/h
Head: 10 ~ 90 m
NPSH: 1.4m~4.5m

Maximal Efficiency: 70%
Seal Type: Mechanical seal/ dynamic seal/ packing seal
Pump Weight: up to 3000kg
RPM: 1450 r/min
Material:Corrosive resistance metal

Max Motor Power: 315 kw

Structure

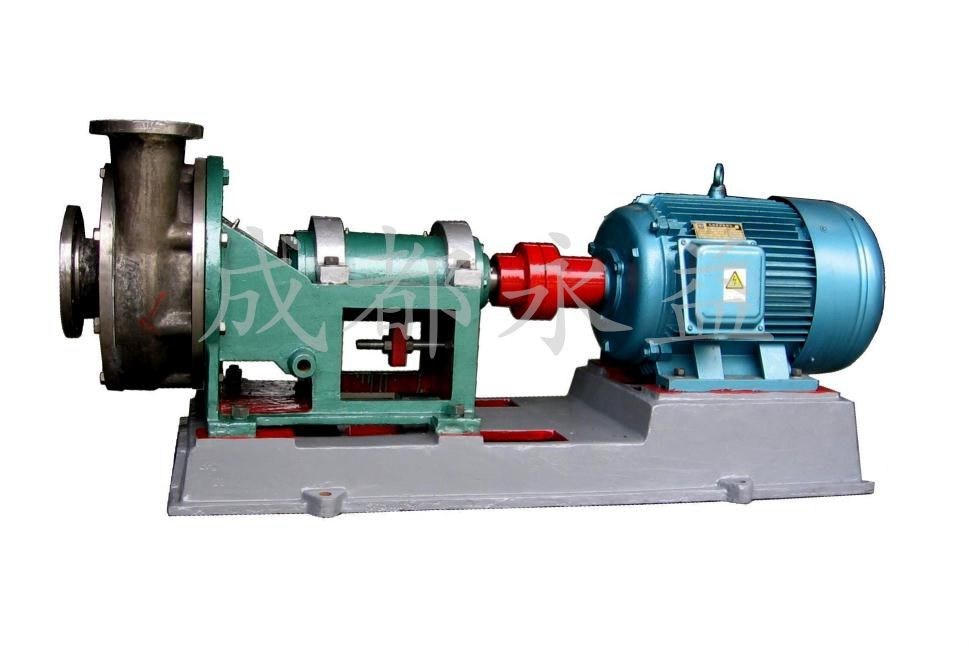

Product Picture

Structure Feature/Advantage:

1. Radial split, rear door, single stage single suction volute centrifugal pump

2. Impeller has multi types: closed, semi-open, fully open, swirling structure

3. Back blades is used to balance axial forces and prevent solid particles from entering the seal

4. The volute of the pump is a suction end, a tangential outlet, and a cantilever support structure.

5. The bearing body is lubricated with grease or oil

6. Shaft seals can be mechanical seals or vice impeller + packing dynamic seal

Impeller  Feature

1) The impeller is designed as open impeller, semi-open impeller, vortex impeller and closed impeller.

2) The closed impeller is designed as a wide-flow impeller according to the principle of multi-phase flow, which is beneficial to the passage of solid medium without clogging

3) The impeller is designed with back blades, and the front back blades are used to prevent the medium from flowing back toward the pump inlet.

4) The blades are used to reduce the axial leakage pressure and balance the axial force.

5) The impeller is mounted on the shaft with a conical fit for easy assembly and disassembly.

6) The impeller is fastened with impeller nut and locking screw.

Application

1. Alkali industry: mother liquor of ammoniacal brine for production of calcined soda,ammonia and soda,caustic alkali for production of chloralkali,chlorine products,chlorate,hypochlorite etc.

2. Nonferrous metallurgy: conveying electrolyte of electrolyzed copper and nickel,acid mist/liquor for cobalt production,ore pulp for zinc production,ammonium vanadate for vanadium production and acid thiourea liquid forgold production.

3. Steel industry: plating,acid washing,

4. waste acid treatment.Acid industry: nitric acid,sulphuric acid,hydrochloric acid,phosphoric acid,acetic acid etc.

5. Petrochemical: petroleum refined aldehydes,alky| benzene production.

6. Synthetic fiber and plastic industry: production,weaving and dyeing of polyester fiber and PVC.

7. Paper making: conveying boiling liquid of pulp and bleaching liquid.

8. Chemical fertilizer industry: production of urea and ammonium nitrate.

9. Pharmaceutical: production of medicine and pesticide.

10. Environmental protection: conveying acid mist/liquor.
