Horizontal Centrifugal Pump
>
|
| Place of Origin | Sichuan, China |
| Brand Name | horizontal-slurrypump.com |
| Model Number | OEM |
| Document | Product Brochure PDF |

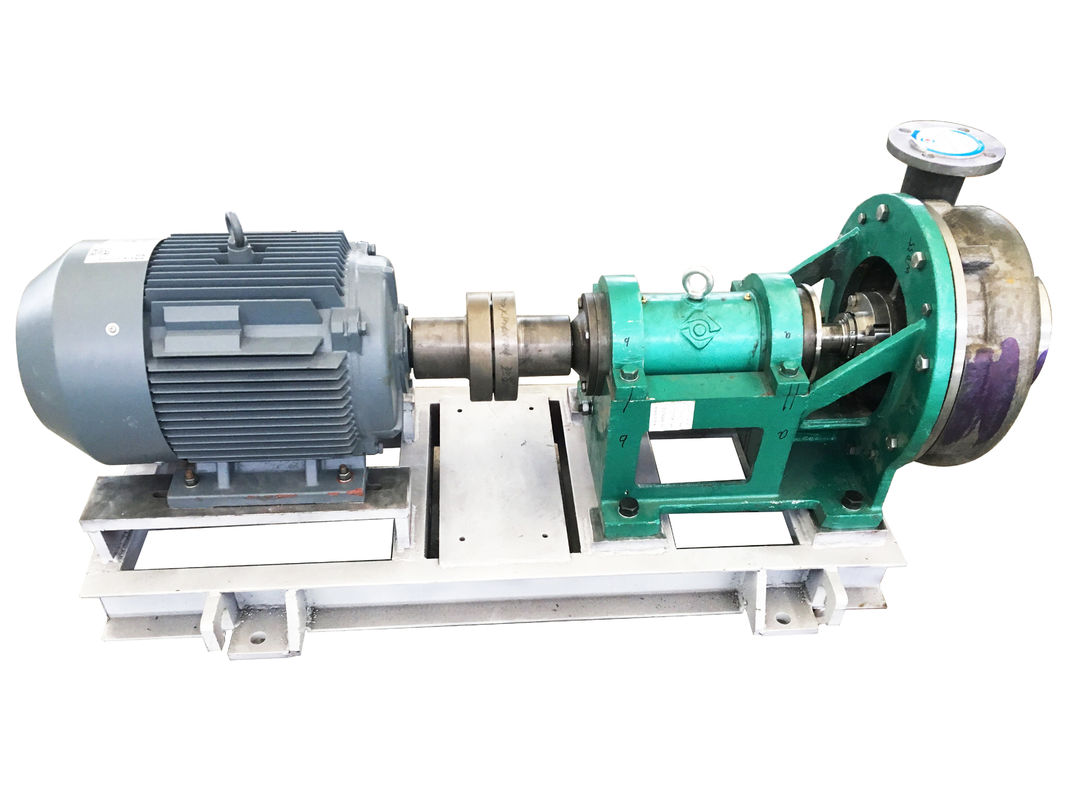

Large Capacity Horizontal Centrifugal Pump Single Suction Split Case Electric Power
Product Description
WD-series pumps are horizontal corrosion-resistant centrifugal pumps, with spacious impeller flow channel and superior hydraulic performance. The back shroud of impeller is equipped with back blade, which can reduce media leakage. In order to recover pump’s performance when flow passage components are worn and corroded, axial adjusting device is equipped to adjust the space between impeller and pump body. Variable types of shaft seal (including mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal) are adopted to meet the shaft sealing requirements for carrying variable media
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Product Show
Specification Range
|
|
Model: WD-series centrifugal pump |
| Discharge Size: 40mm~200mm | |
| Inlet Size: 50mm~250mm | |
| Capacity: 8 ~ 800 m³/h | |
| Head: 10 ~ 90 m | |
| Maximal Efficiency: 70% | |
| NPSH: 1.4m~4.5m | |
| Allowable Max Motor Power: 315 kw | |
| Impeller | Allowed Max Particle Size: 20 mm |
| Vanes: 5/6 | Seal Type: mechanical seal/dynamic seal/packing seal |
| Type: closed/ half open | Pump Weight:up to 3000kg |
| Material:Metal (according to working conditions ) | RPM: 1450 r/min |
Usage
1. Used in different industries like chemical industry, metallurgy industry, electricity industry, paper industry, food industry, pharmaceutical industry and synthetic fibre.
2. Carry corrosive & abrasive liquid mediums which contain solids content no more than 35%
