geothermal heat pump

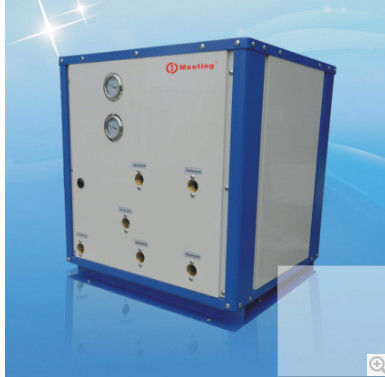

5P water source three-effect machine_MDS50D water source triple heat pump_Ultra-low temperature water source triple

Technology Specification

Machine interior accessories

1 compressor :
The world-famous Copeland Flexible Scroll Compressor has functions such as low wear resistance, long service life, over-current protection, phase loss protection, over-the-counter protection, strong liquid-impact resistance, and high and low voltage protection. Copeland compressor built-in pressure relief valve in the body can automatically relieve pressure when the high pressure is too high

2 Electronic expansion valve :
The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.

3 .Condenstion heat exchanger :

In combination with the United States and the United States outside the threaded pipe technology, successfully created a "spring" spiral tube new structure condenser. Better heat transfer, faster heat transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance

4 . Electronic control system :

With powerful engineering supporting control functions , it can control circulating water pump, make-up water , return water, water supply , electric heating , PID automatic defrosting, etc., making the control easier. According to the needs of different projects, it can set various parameters by itself and realize various water supply schemes . The entire system can be automated without special care.

5 .Evaporation heat exchanger :
The use of high efficiency plate heat exchanger, high heat transfer efficiency, small footprint, and has a small heat dissipation characteristics, in the case of water quality is not very bad, the use of plate heat exchanger is the best choic

Ground source heat pump work principle:

The difference between the water source heat pump and the air source is that the low-temperature and low-pressure liquid refrigerant exchanges heat with the water in the water/ground source pipeline in the evaporator, absorbs the heat Q1 in the water and evaporates into a low-temperature and low-pressure gaseous state, and then enters into a vaporized state. Compressor works through compressor W, is compressed into high temperature and high pressure gas, then enters condenser, exchanges heat with indoor water, transfers heat Q2 to indoor water, and the refrigerant condenses into high temperature and high pressure liquid, and then enters the expansion valve. With throttling, the refrigerant becomes a low-temperature and low-pressure liquid, and the throttling refrigerant enters the evaporator and undergoes heat exchange and evaporation, thereby realizing inverse carnot
The whole process, also Q2=Q1+W in this process

FAQ

Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-10days, mass production time depend on the products'quantity.

Q3.Do you offer guarantee for the products?

A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).

Certificsate we have got :

1> ISO 9001, ISO 14000

2> Our company has been inspected and certificate by EMC

3> CE And EN14511, EN 14825-ERP for heat pump exported to europe

4> Energy label for all heat pump models sold to oversea market

5> Testing laboratory calibrated by CNAS

Porduct Details

Picture Detalis
