Vertical Slurry Pump
>
|
| Place of Origin | Sichuan, China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO9001 |
| Model Number | OEM |

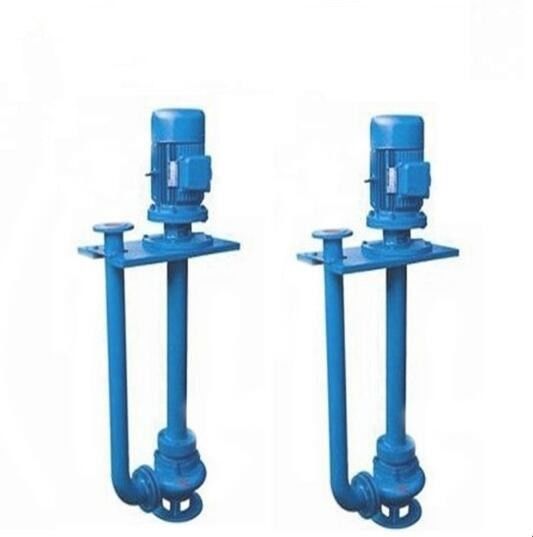

Heavy Duty Long Warranty Service Vertical Shaft Pump Sand Mining Pump with Support Plate
Structure drawing
| 1 | Volute casing | 2 | support | 3 | Motor base |
| 4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
| 7 | Rear liner plate | 8 | Bearing body | 9 |
Right support plate |
Product Summarize
a. ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump.
b. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.
c. Geometrical shape of its flow passage components is suitable for flow condition of medium.
d. High wear resistance, corrosion resistance and impact resistance material is used for flow passage components to improve service life.
Parameter
|
Model |
Clear Water Performance |
||||
|
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
Effectiveness η |
|
|
150ZJL-A35 |
590-980 |
119-364 |
4.4-17.9 |
3.9-15.3 |
63.1-68.1 |
|
100ZJL-A36 |
970-1480 |
76-239 |
15.3-51.1 |
9.6-32.1 |
54.1-58.9 |
|
80ZJL-A33 |
970-1480 |
42-157 |
8.1-48.6 |
8.7-33.2 |
52.3-56.5 |
|
65ZJL-A38 |
970-1470 |
50-120 |
19.4-52.3 |
6.9-28.8 |
42.7-45.8 |
|
65ZJL-A30 |
960-1470 |
25-98 |
11.1-34.7 |
2.3-13.4 |
43.7-51.9 |
|
50ZJL-A40 |
970-1470 |
21-65 |
16.5-58.3 |
5.5-22.1 |
29.9-34.1 |
|
50ZJL-A36 |
970-1470 |
36-85 |
13.1-42.7 |
4.7-20.7 |
31.2-39.4 |
|
50ZJL-A20 |
910-1440 |
10.8-38 |
4.3-10.7 |
0.4-2 |
31.2-38.6 |
|
40ZJL-A35 |
970-1470 |
15.8-47.6 |
13.6-42.9 |
3.8-14.1 |
27.3-33.8 |
|
40ZJL-A25 |
910-1440 |
6.6-22.9 |
7.2-21.5 |
0.6-2.8 |
26.1-37.6 |
|
40ZJL-A21 |
910-1140 |
6.0-9.5 |
6.8-17 |
0.4-2.6 |
27.9-44.6 |
