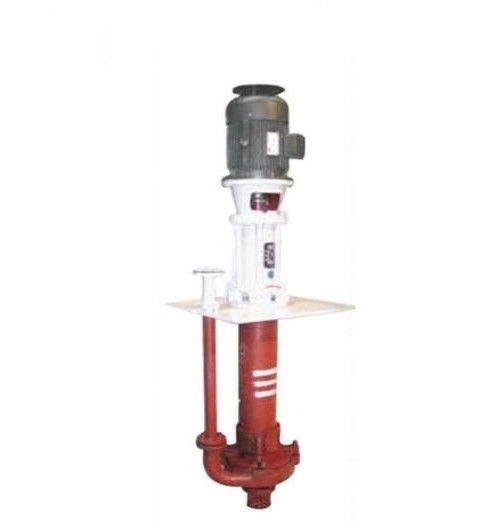

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
Product Summarize
a. ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump.
b. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.
c. Geometrical shape of its flow passage components is suitable for flow condition of medium.
d. High wear resistance, corrosion resistance and impact resistance material is used for flow passage components to improve service life.
Application
|
♦Mining |
gold mining,copper mining,coal mining,iron mining, tin mining, sand mining, and so on |
|
♦ Factories |
alumina factory,coal factory, suger factory,chemical factory,water treatment factory.cement factory and so on |
|
♦ Mineral, Dredging |
sand booster application, Mineral processing, and dewatering work |
Specification
| Type | ZJL |
| Capacity (m3/h) | 6 ~ 364 |
| Head (m) | 4 ~ 60 |
| Speed (r/min) | 1450-2900 |
| NPSHr (m) | 1.4~3.5 |
| Eff. (%) | 60~85 |
| Dia Inlet (mm) | 50~250 |
| Dia Outlet (mm) | 40-200 |
1. Stable performance, reliable operation;
2. Suitable for corrosive fluid
3. Coupling connection construction: convenient for maintenance and trouble shooting.
4. Optional open / Semi-open/Closed impeller
Structure
|
1 |
Volute casing |
2 |
support |
3 |
Motor base |
|
4 |
Impeller |
5 |
Left support plate |
6 |
Discharge pipe |
|
7 |
Rear liner plate |
8 |
Bearing body |
9 |
Right support plate |
Product Picture and Details
