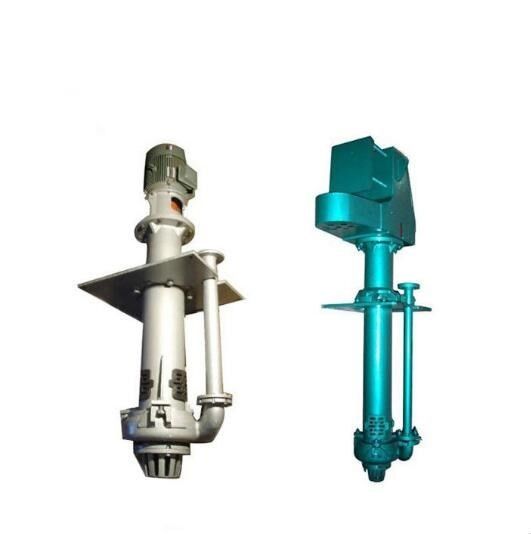

Industrial Long Shaft Vertical Slurry Pump / Sand Pump For Abrasive Sludge Suction
Product Features
Fully elastomer lined or hard metal fitted
Double suction semi-open impeller
No submerged bearing or packing
Optional recessed impeller and suction agitator available
MPV models feature full rubber covering for corrosion resistance
Can be run in insufficient suction duties
Parameter Range
| Name | ZJL-series Vertical Slurry Pump |
| Head | 4 ~ 60 m |
| Capacity | 6 ~ 364m³/h |
| Discharge Size | 40mm~200mm |
| Inlet Size | 50mm~250mm |
| Maximal Efficiency | 70% |
| NPSH | 1.4m~3.5m |
| Allowable Max Motor Power | 315 kw |
| Diameter |
200mm~470mm |
Product Description
ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.
Material
|
Description |
Standard Material |
Material Options |
|
Shaft |
4140 Mild Steel |
Available on Request |
|
Bearing Housing |
Cast Iron |
|
|
Column |
Mild Steel |
|
|
Upper Strainer |
Rubber |
Cast Iron |
|
Lower Strainer |
Cast Iron |
|
|
Back Liner |
27% Chrome White Iron |
|
|
Pump Casing |
27% Chrome White Iron |
Rubber Lined White Iron |
|
Impeller |
27% Chrome White Iron |
Rubber |
|
Discharge Pipe |
Mild Steel |
Rubber Lined Mild Steel/ Composite |
|
Adaptor Plate |
Mild Steel |
|
Technical Parameter
|
Model
|
Clear Water Performance |
Supporting motor
|
|||||
|
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
effectiveness η |
|||
| r/min | (m³/h) | m | kw | % | |||
|
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
| 332 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
|
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
|
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
|
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
| 185 | 42.2 | 39.4 | 58.9 | ||||
| 239 | 34.1 | 45 .1 | 54.2 | ||||
|
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
| 124 | 18.9 | 11.8 | 58.9 | ||||
| 160 | 15.3 | 13.5 | 54.2 | ||||
|
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
| 141 | 41.6 | 31.0 | 56.5 | ||||
| 157 | 36.5 | 33.2 | 52.3 | ||||
|
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
| 94 | 12.4 | 7.1 | 56.5 | ||||
| 122 | 8.4 | 8.7 | 52.3 | ||||
|
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
| 97 | 45.8 | 26.4 | 45.8 | ||||
| 120 | 43.4 | 28.8 | 45.6 | ||||
|
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
| 65 | 20.5 | 7.9 | 45.8 | ||||
| 80 | 19.4 | 8.6 | 45.6 | ||||
|
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
|
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
|
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
| 47 | 51 | 19.1 | 34.1 | ||||
| 65 | 37.9 | 22.1 | 30.3 | ||||
|
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
| 31 | 22.2 | 5.5 | 34.1 | ||||
| 43 | 16.5 | 6.4 | 30.3 | ||||
|
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
| 63 | 37.8 | 18.7 | 39.4 | ||||
| 85 | 29.3 | 20.7 | 33.5 | ||||
|
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
| 42 | 16.9 | 5.6 | 39.4 | ||||
| 57 | 13.1 | 6.2 | 33.5 | ||||
|
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
| 24.7 | 9.2 | 1.6 | 38.6 | ||||
| 38.0 | 6.0 | 2.0 | 31.2 | ||||
|
910 |
10.8 | 4.3 | 0.4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
| 15.6 | 3.7 | 0.4 | 38.6 | ||||
| 24.0 | 2.4 | 0.5 | 31.2 | ||||
|
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
| 42.3 | 34.3 | 13.7 | 33.8 | ||||
| 47.6 | 30.5 | 14.1 | 28.1 | ||||
|
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
| 28.3 | 15.3 | 4.1 | 33.8 | ||||
| 31.8 | 13.6 | 4.2 | 28.1 | ||||
|
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
|
910 |
6.6 | 9.2 | 0.6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
| 12 | 8.1 | 0.7 | 36.6 | ||||
| 14.9 | 7.2 | 0.7 | 37.6 | ||||
|
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
|
910 |
6.0 | 6.8 | 0.4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
| 12.8 | 6.1 | 0.5 | 42.4 | ||||
| 16.4 | 5.6 | 0.6 | 44.6 | ||||
