Abrasive Slurry Pump Suction Sludge Dredge Underwater Vertical Slurry Pumps
Product Description
ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.
Main Usage
· Mining |
· Civil Construction |
· Industry |
· Coal Preperation |
· Mineral Processing |
· Chemical Precessing |
Product Features
1 Flow passage components:this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
2 Bearing components:we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
3 Sealing:Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.
Technical Parameter
Model
|
Clear Water Performance |
Supporting motor
|
|||||
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
effectiveness η |
|||
r/min | (m³/h) | m | kw | % | |||
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
332 | 13.2 | 17.5 | 68.1 | ||||
364 | 12.1 | 18.0 | 66.8 | ||||
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
247 | 7.3 | 7.2 | 68.1 | ||||
271 | 6.7 | 7.4 | 66.8 | ||||
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
200 | 4.8 | 3.8 | 68.1 | ||||
219 | 4.4 | 3.9 | 66.8 | ||||
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
185 | 42.2 | 39.4 | 58.9 | ||||
239 | 34.1 | 45 .1 | 54.2 | ||||
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
124 | 18.9 | 11.8 | 58.9 | ||||
160 | 15.3 | 13.5 | 54.2 | ||||
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
141 | 41.6 | 31.0 | 56.5 | ||||
157 | 36.5 | 33.2 | 52.3 | ||||
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
94 | 12.4 | 7.1 | 56.5 | ||||
122 | 8.4 | 8.7 | 52.3 | ||||
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
97 | 45.8 | 26.4 | 45.8 | ||||
120 | 43.4 | 28.8 | 45.6 | ||||
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
65 | 20.5 | 7.9 | 45.8 | ||||
80 | 19.4 | 8.6 | 45.6 | ||||
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
58 | 31.9 | 9.7 | 51.9 | ||||
98 | 26.0 | 13.4 | 51.7 | ||||
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
38 | 13.6 | 2.7 | 51.9 | ||||
64 | 11.1 | 3.7 | 51.7 | ||||
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
47 | 51 | 19.1 | 34.1 | ||||
65 | 37.9 | 22.1 | 30.3 | ||||
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
31 | 22.2 | 5.5 | 34.1 | ||||
43 | 16.5 | 6.4 | 30.3 | ||||
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
63 | 37.8 | 18.7 | 39.4 | ||||
85 | 29.3 | 20.7 | 33.5 | ||||
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
42 | 16.9 | 5.6 | 39.4 | ||||
57 | 13.1 | 6.2 | 33.5 | ||||
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
24.7 | 9.2 | 1.6 | 38.6 | ||||
38.0 | 6.0 | 2.0 | 31.2 | ||||
910 |
10.8 | 4.3 | 0.4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
15.6 | 3.7 | 0.4 | 38.6 | ||||
24.0 | 2.4 | 0.5 | 31.2 | ||||
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
42.3 | 34.3 | 13.7 | 33.8 | ||||
47.6 | 30.5 | 14.1 | 28.1 | ||||
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
28.3 | 15.3 | 4.1 | 33.8 | ||||
31.8 | 13.6 | 4.2 | 28.1 | ||||
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
18.4 | 19.0 | 2.6 | 36.6 | ||||
22.9 | 16.8 | 2.8 | 37.6 | ||||
910 |
6.6 | 9.2 | 0.6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
12 | 8.1 | 0.7 | 36.6 | ||||
14.9 | 7.2 | 0.7 | 37.6 | ||||
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
20.3 | 15.3 | 2.0 | 42.4 | ||||
25.9 | 14.1 | 2.2 | 44.6 | ||||
910 |
6.0 | 6.8 | 0.4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
12.8 | 6.1 | 0.5 | 42.4 | ||||
16.4 | 5.6 | 0.6 | 44.6 |
Structure
1 | Volute casing | 2 | support | 3 | Motor base |
4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
7 | Rear liner plate | 8 | Bearing body | 9 | Right support plate |

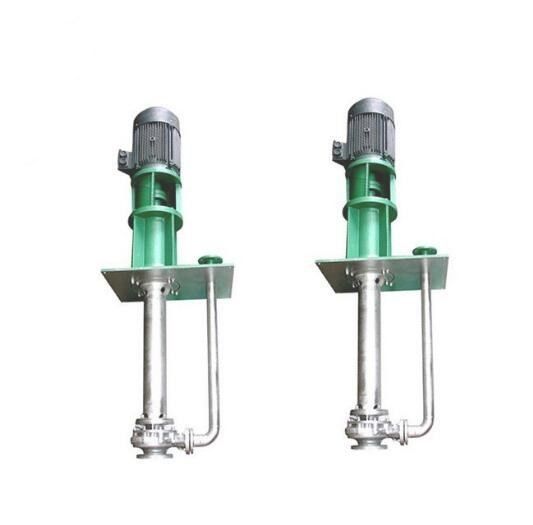

Product Picture
