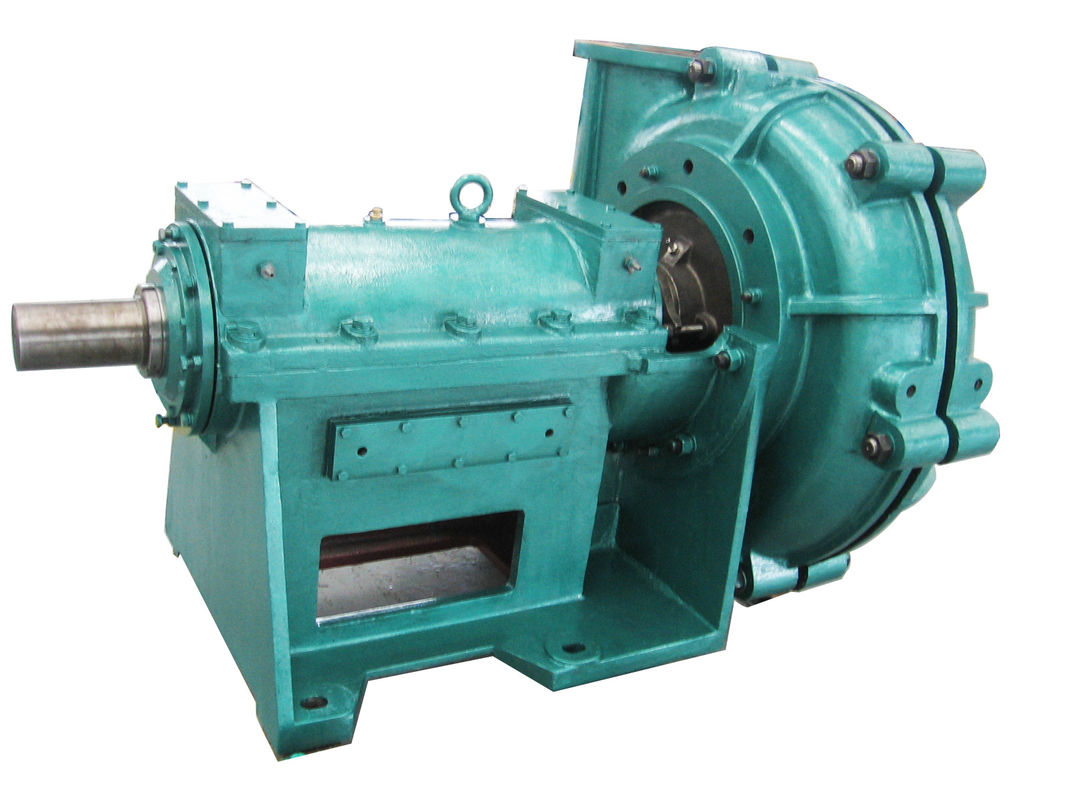

Solid Water Circulation Horizontal Sludge Pump/ Electric Horizontal Centrifugal Slurry Pump
Product Details
ZJ-series slurry pumps are designed to handle liquids containing abrasive and coarse grained solids. It has a heavy duty design with a single stage axial inlet.
Shaft sleeve: A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal: A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.
Shaft and bearing assembly: A large diameter shaft with a short overhang minimizes deflection and vibration.Heavy-duty roller bearings are housed in a removable bearing cartridge.
Main Features
1) Replaceable wear-resistant metal lining, impeller, sheath, guard plate and over current parts
2) Long service life, reliable performance and easy operation
3) Horizontal slurry pump
Application
| Ash slurry in thermal power stations |
| Liquids of abrasive coarse grained solids |
| Aluminium Industries - Hydrate, Seed, Bauxite and Red mud Slurries |
| Lime mud slurry, Milk of lime, Liquor upto 50% solids |
| Coal slurries & floatation tailings |
| Iron ore in beneficiation plants |
| Sand water mixtures |
Parameter
| Model | Clear Water Performance | ||||
Flow Q
| Head | Rotating speed n | Shaft power (Pa) | Effectiveness η | |
| (m³/h) | m | r/min | kw | % | |
| 300ZJ(G)-I-A | 704-2333 | 30.6-80 | 490-980 | 135-505 | 66-81 |
| 250ZJ(G)-I-A | 405-1480 | 29.1-128.7 | 730-980 | 58.3-652 | 54-76.9 |
| 200ZJ(G)-I-A | 256-976 | 28-133.7 | 730-980 | 60.3-448.1 | 50-79.6 |
| 150ZJ(G)-I-A | 164-600 | 19.4-91.2 | 730-980 | 15.8-161.5 | 46.1-74.6 |
| 100ZJ(G)-I-A | 86-360 | 16-100.2 | 980-1480 | 6.7-105.5 | 58.7-70.4 |
| 80ZJ(G)-I-A | 60-242 | 15.7-109.8 | 980-1480 | 5.5-115.9 | 38.8-66.7 |
| 65ZJ(G)-I-A | 28-69 | 11.2-34.8 | 960-1460 | 1.7-10.8 | 54.2-63.5 |
| 50ZJ(G)-I-A | 31-111 | 34.3-110.7 | 970-1480 | 9.7-66.9 | 12.2-45.1 |
| 40ZJ(G)-I-A | 9-23 | 9.1-44.6 | 1400-2900 | 0.3-4.7 | 33.2-52.4 |
Installation Dimension
The slurry pumps adopt direct drive stucture, single base installation and sharing base installation are both available for you to choose.
Single base
Sharing Base
