Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump
  • Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump

Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump

Place of Origin Sichuan, China
Brand Name horizontal-slurrypump.com
Certification ISO9001
Model Number OEM
Product Details
Theory:
Centrifugal Pump
Capacity:
Up To 1000 UKGPM
Head:
Up To 130m
Standard Or Nonstandard:
Standard
Warranty:
One Year
Power Source:
Electric
High Light:

horizontal centrifugal slurry pump

,

centrifugal mud pump

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD500-5000/set
Packaging Details
free fumigation export wooden box packaging
Delivery Time
25 working days after receiveing advance payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability
300 sets per month
Product Description

Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump



Slurry Pump Components Description



Impeller
The impeller, either elastomer, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid, usually made of high chrome material. Cast-in impeller threads are better suited for slurries.
Casing
the structure is volute type split outer casing, contain the wear liners and provide high operation pressure capabilities, which efficiency is mouch higher than semi-volute or concentric structure.
Shaft and Bearing Assembly
A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearing are housed in a removable bearing cartridge.
Drive Type

This series pumps are always driven by electric motor. 220V/380V/440V etc are all available. Normal motor, high efficiency motor and explosion-proof motor all can be choosen.

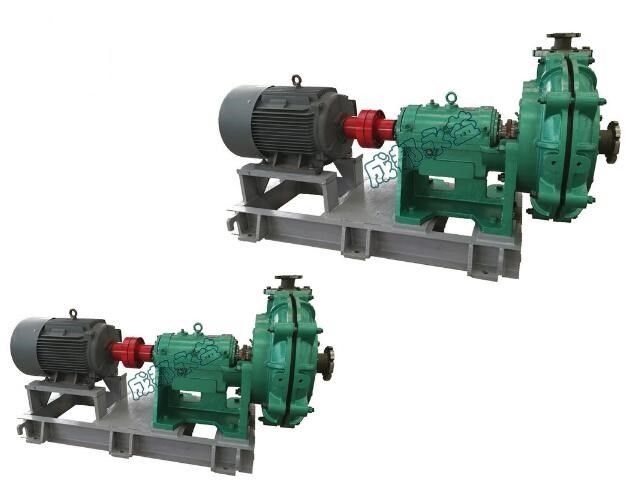

Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump 0



Main Features



1) Good passing ability:gravel pump max passing particles size is 380mm;

2) Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.

3) High concentration, volume concentration reach to 60%, weight concentration reach to 70%;

4) Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 520m, and can be used in series to satisfy much higher head requirements;

6) High flow rate capacity: can be reached 3400m3/h;

7) Diameter size:outlet size from 1" to 22"



Application



  • · Chemical Process
  • · Heavy Minerals
  • · Paper and Pulp
  • · Mill Discharge
  • · Sugar Beet
  • · Slag Granulation
  • · Bottom Boiler and Fly Ash
  • · Cyclone Feed
  • · Power Plants
  • · Other industry



Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump 1



Specification Data



Discharge Size:20mm~350mm NPSH:0m~3m
Inlet Size:32mm~400mm Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h Seal Type:step-down dynamic seal
Head:10 ~ 130 m Pump Weight:up to 3000kg
Maximal Efficiency:70% RPM:1450 r/min



Parameter



Model

Clear Water Performance

Flow Q



Head

Rotating speed n

Shaft power (Pa)

Effectiveness η

(m³/h)

m

r/min

kw

%

300ZJ(G)-I-A

704-2333

30.6-80

490-980

135-505

66-81

250ZJ(G)-I-A

405-1480

29.1-128.7

730-980

58.3-652

54-76.9

200ZJ(G)-I-A

256-976

28-133.7

730-980

60.3-448.1

50-79.6

150ZJ(G)-I-A

164-600

19.4-91.2

730-980

15.8-161.5

46.1-74.6

100ZJ(G)-I-A

86-360

16-100.2

980-1480

6.7-105.5

58.7-70.4

80ZJ(G)-I-A

60-242

15.7-109.8

980-1480

5.5-115.9

38.8-66.7

65ZJ(G)-I-A

28-69

11.2-34.8

960-1460

1.7-10.8

54.2-63.5

50ZJ(G)-I-A

31-111

34.3-110.7

970-1480

9.7-66.9

12.2-45.1

40ZJ(G)-I-A

9-23

9.1-44.6

1400-2900

0.3-4.7

33.2-52.4



Production Process



Double Casing High Pressure Slurry Pump , End Suction Mud Pump Centrifugal Sludge Pump 2



Our Service



Before-sale service

Product introduction, technical exchange, non-standard product design, problem explanation.



In-sale service

1. Honoring contracts, ensuring on-time delivery, keeping contact with users at any time.
2. For special or complicated [products, arrange persons to provide the users with training and guidance at the product use, troubleshoot, adjustment and repair.



After-sale service
1. Offer a warranty for 12 months from the date of ex-works, with return, replacement and repair available.
2. During the use of products, carry out a periodic organization of the personnel in charge of the technique, quality inspection and service to contact the users to get the feedback on the quality, conditions of use, comments on improvement etc. so as to further enhance the quality.
