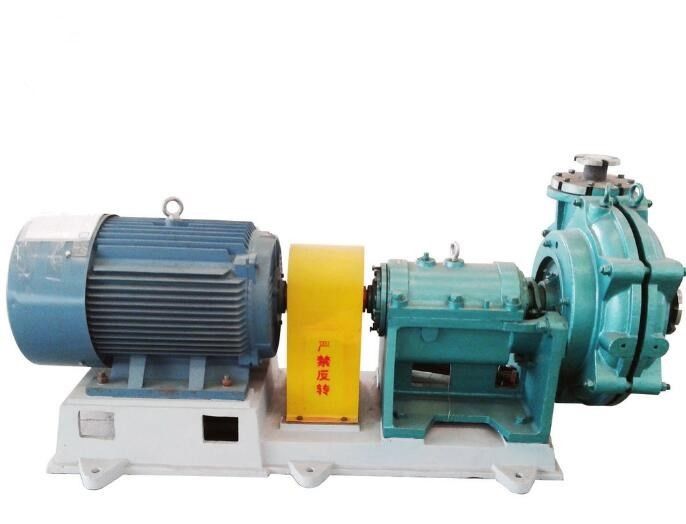

Water Conservancy Centrifugal Mud Pump With PTFE Rubber Lined Inside

Water Conservancy Centrifugal centrifugal Mud Pump Slurry Pump With PTFE / Rubber Lined Inside

Slurry Pumps Work Principle

The pump is driven by electric motor. the motor rotates, the pump shaft rotates through a V-belt drive. The rotational kinetic energy converts into the hydrodynamic energy of the fluid flow, centrifugal Slurry Pumps motivate fluid flow along pipelines. The fluid enters axially into the pump impeller, which by its rotation acts tangentially and radially on the fluid. The fluid is speed up by gaining energy from the impeller, flowing radially outward into the casing. Being pressurized, it then exits the volute.

Specification Data

Discharge Size:20mm~350mm

NPSH:0m~3m
Inlet Size:32mm~400mm

Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h

Seal Type:step-down dynamic seal
Head:10 ~ 130 m

Pump Weight:up to 3000kg
Maximal Efficiency:70%

RPM:1450 r/min

Details

	Volute casing Designed to achieve higher operating pessures Designed for easy assembly interchangeability with High-Chrome, Elastomer and various other material options
	Impeller   • Various impeller designs to suit any application • Impeller adjustment via bearing assembly • Expulsion vanes on impeller shroud, minimises stuffing box • Various materials to suit any application • Corrosion resistance and wear resistance
	Bearing assembly   • Overhang on shaft design – assists with shaft deflection as well as vibration • Dimensional interchangeability to suit heavy-duty bearing assemblies • Safe and easy to maintain

Features

1) Widely application
2) Long bearing life
3) Wear resistant wet parts
4) Wear-resistant metal liners or rubber liners
5) Easy adjustment of impeller
6) Centrifugal seal, mechanical seal and packing seal

Application

This pump can be used to transport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.
