STUFFING BOX Slurry Pump Parts For Centrifugal Slurry Pump ISO Certify
  • STUFFING BOX Slurry Pump Parts For Centrifugal Slurry Pump ISO Certify

STUFFING BOX Slurry Pump Parts For Centrifugal Slurry Pump ISO Certify

Place of Origin China
Brand Name horizontal-slurrypump.com
Certification ISO
Model Number OEM
Document Product Brochure PDF
Product Details
Type:
078 STUFFING BOX For 6/4D-AH
MOQ:
1 Set
Original:
China
Pump Model:
6/4D-AH
Inlet:
6inch
Outlet:
4inch
Usage:
Slurry,For Pumps
Theory:
Slurry Pump Parts
Highlight:

slurry pump spare parts

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
based on quantity
Packaging Details
wooden case
Delivery Time
15days
Supply Ability
200sets monthly
Product Description
STUFFING BOX 078 Slurry Pump Parts For 6 / 4D-AH Centrifugal Slurry Pump



Overview



The STUFFING BOX 078 Slurry Pump Part is an important part of the stuffing box seal.



The stuffing box seal is composed of packing box body, packing, gland, bolt and other basic parts. The packing placed between the box body and the rotating shaft is radially extended under the axial force of the bolt force and the gland, so that the packing is tight. Adhered to the periphery of the rotating shaft, the lubricating oil added from the oil cup will form a very thin oil film between the packing and the contact surface of the rotating shaft when the shaft rotates, which not only has lubricating effect, but also prevents the medium in the kettle from escaping and Infiltration of gas outside the kettle.



The sealing form of the Centrifugal Slurry Pump mainly includes packing seal, auxiliary impeller seal and mechanical seal. The packing seal can be used together with the auxiliary impeller seal. The packing sealing structure is simple, low in cost and easy to maintain, and is widely used in various types of Centrifugal Slurry Pumps.





Application

The vertical sump pumps are designed for delivering corrosive, large particle and high density slurries.

The pumps are widely used in metallurgy, mining, coal, power plant, building materials and environmental

protection industrial departments, etc.



Warma slurry pump parts code:

-tell me the standard code no .we can quote you price immediately :



B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,

EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,

GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...



Pump replaced parts material:



1) Material: D21, G01, A05, A49 ...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316, PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,

S50, U01, EPDM, PU, CR...

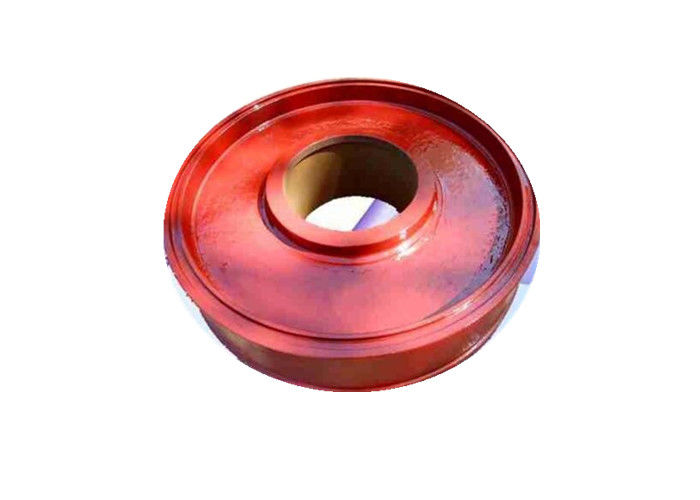

STUFFING BOX Slurry Pump Parts For Centrifugal Slurry Pump ISO Certify 0



STUFFING BOX Slurry Pump Parts For Centrifugal Slurry Pump ISO Certify 1


Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller   A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005   Assorted
