Swimming Pool Heat Pump
>
|
| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
| Document | Product Brochure PDF |
1. SHIZA brand slurry pump spare parts are made of high chromium alloy A05 which has superior wear
and corrosive resistance as well as rubber liners parts made of high quality natrual rubber to
transport the medium with light abrasion and non-sharp solids liquid and have small corrosive liquid.
2. We do standard chrome alloy materials or rubber parts OEM .
-tell me the standard code no .we can quote you price immediately :
-Tell me your requirements and can customize spare parts for you.
The pump parts can be made of high chrome, rubber or ceramic materials for longer service life and higher efficiency.
Materials Offered:
- High Chrome Cast Iron
- Ductile Iron
- Stainless Steel
- Natural Rubber
- Specific Rubber
- Polyurethane
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |

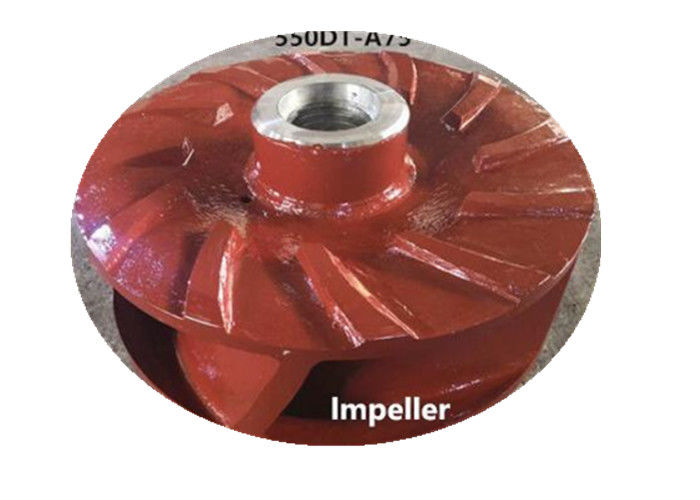

| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
DT Series Pump Construction Drawing
