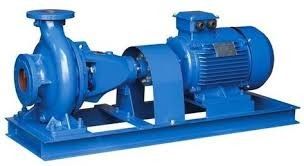

Centrifugal Slurry Pump
>
|
| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
3. Type L(R) pumps operate in high speed with small volumes and light weight to save floor area
4. It is mainly used to transport the slurry which contains fine particle size and weight concentration
not more than 30%.The liner and impeller of this pump can be changeable ,either with anti-abrasive
metal or rubber material .
Type meaning of 300S-L model slurry pump
| Type meaning for 300S-L model slurry pump | |
|
300S-L |
|
| 300 | Pump outlet 300mm |
| S | pump bracket type S |
| L | Low abrasion slurry pump |
Quality control for 300S-L model slurry pump
| Inspection Equipment | |
| 1. Inspection and Detection | |
| With various inspection and detection instruments ,like three-coordinate measuring instrument ,metallographic microscope, direct reading spectrometer ,Brinell hardness meter ,Vickers hardness meter, carbon and sulfur analyzer and other detection equipment,we can carry on the chemical composition analysis ,physical properties test ,coordinate measurement for various steel&steel materials | |
| Complete pump set inspection | |
| We have performance testing platform for each batch pump inspection before delivery | |
| Quality control system for each set slurry pump | |
|
Purchasing raw material ra |
1. Strict rules and procedures to choose the raw material supplier |
| 2. Each batch raw material will be tested by quality control department | |
|
C casting of parts
|
1 .Melting:Chemical element analysis for raw material before and after stove . |
| 2.Moulding :Strict sand moulding qualified before iron liquid pouring for casting | |
| 3. Cleaning semi-finished parts sand :Strict inspection on the appearance and size qualified before storage. | |
|
|
1. Self -inspection and inspection between different steps. |
| 2. First part inspection | |
| 3. Procedures inspection | |
| 4..Inspection before storage the mining AH slurry pumps | |
|
A Assembling of sl slurry pump |
1. Inspector tracks the whole process of assembly of slurry pumps |
| 2. Slurry Pump pressure inspection and fillout the testing table | |
| 3. Painting inspection | |
| 4. Performance testing and fillout the testing table | |
| 5. Packing inspection of slurry pump | |
| 6. Issue quality certificate | |
Performance Chart
| type | Max. | ClearWaterPerformance | Impeller | Application | |||||
| Capacity | Head/m | Speed/rpm | Efficiency | NPSH | Nos | Diameter | |||
| 20 A-L | 7.5 | 2.34-10.8 | 6-37 | 1400-3000 | 30 | 3.5-8 | 4 | 152.4 | -Ball mill discharge |
| 50 B-L | 15 | 16.2-76 | 9-44 | 1400-2800 | 55 | 3.5-8 | 5 | 190 | -Coarse tailings |
| 75 C-L | 30 | 18-151 | 4-45 | 900-2400 | 57 | 4 | 229 | -Rod mill discharge | |
| 100 D-L | 60 | 50-252 | 7-46 | 800-1800 | 60 | 4 | 305 | -Coal washing | |
| 150 E-L | 120 | 115-486 | 12-51.5 | 800-1500 | 65 | 4 | 381 | -Wet crushers | |
| 200 E-L | 120 | 234-910 | 9.5-40 | 600-1100 | 64 | 4 | 457 | -Phosphate matrix | |
| 250 F-L | 120 | 396-1425 | 500-800 | 77 | 5 | 550 | -Minerals concentrate | ||
| 300 S-L | 560 | 468-2538 | 8-60 | 400-950 | 79 | 5 | 653 | -Lime grinding | |
| 350 S-L | 560 | 650-2800 | 10-59 | 400-840 | 81 | 5 | 736 | -FGD waste water | |
| 400 ST-L | 560 | 720-3312 | 7-51 | 300-700 | 80 | 5 | 825 | -Flotation | |
| 450 ST-L | 560 | 1008-4356 | 9-48 | 300-600 | 80 | 5 | 933 | -Process chemical | |
| 550 TU-L | 1200 | 1980-7900 | 10-50 | 250-475 | 86 | 5 | 1213 | -Pulp and paper | |
