LC65 - 35 Metal Frame Plate / Interchangeable Spare Parts
Our Product Introduction
for more products please visit us on horizontal-slurrypump.com
Basic Information
Place of Origin:
China
Brand Name:
horizontal-slurrypump.com
Certification:
ISO
Model Number:
OEM
Minimum Order Quantity:
1 set
Price:
based on quantity
Packaging Details:
wooden case
Delivery Time:
7days
Supply Ability:
3000sets monthly
Product Specification
Material:
Chrome Alloy A05
Color:
Customized
Name:
Cover Plate And Frame Plate
Advantage:
Interchangeable
Highlight:
slurry pump spare parts
,centrifugal pump spare parts
Our Product Introduction
for more products please visit us on horizontal-slurrypump.com
Product Description

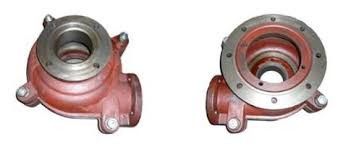

LC65 - 35 Metal Frame Plate ,Interchangeable Spare Parts For Acidic Slurry
Features:
The pump body is volute-shaped, which encloses the impeller in a certain space, transports liquid, and more importantly converts the kinetic energy of the liquid into static pressure energy, so it is also an energy conversion device.
Main applications :
This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
Warman slurry pump parts code:
-tell me the standard code no .we can quote you price immediately.
All of the pump and spare parts can be customized as your application .We provide design and OEM service.
Materials Offered:
-High Chrome Cast Iron
-Ductile Iron
-Stainless Steel
-Natural Rubber
-Specific Rubber
-Polyurethane

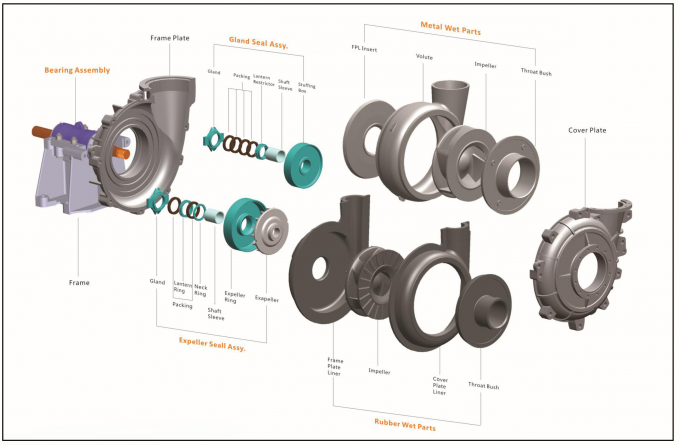

Structure of slurry pump
| No. | Name | Material |
| 1 | Impeller | High-chrome alloy |
| Natural Rubber | ||
| 2 | Volute casing | High-chrome alloy |
| 3 | Front liner plate | High-chrome alloy |
| Natural Rubber | ||
| 4 | Rear liner plate | High-chrome alloy |
| Natural Rubber | ||
| 5 | Liner | High-chrome alloy |
| 6 | Expeller | High-chrome alloy |
| 7 | Shaft sleeve | 3Cr13 |
| 8 | Water-seal ring | High-chrome alloy |
| 9 | Shaft | 45#steel quenching and high temprature tempering |
| 10 | Bearing housing | Gray Iron |
| 11 | Expeller ring | High-chrome alloy |
| Natural Rubber | ||
| 12 | Front casing | Gray iron or Nodular cast iron |
| 13 | Rear casing | Gray iron or Nodular cast iron |
| 14 | Base | Gray Iron |
| 15 | Support | QT500-7 |
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |

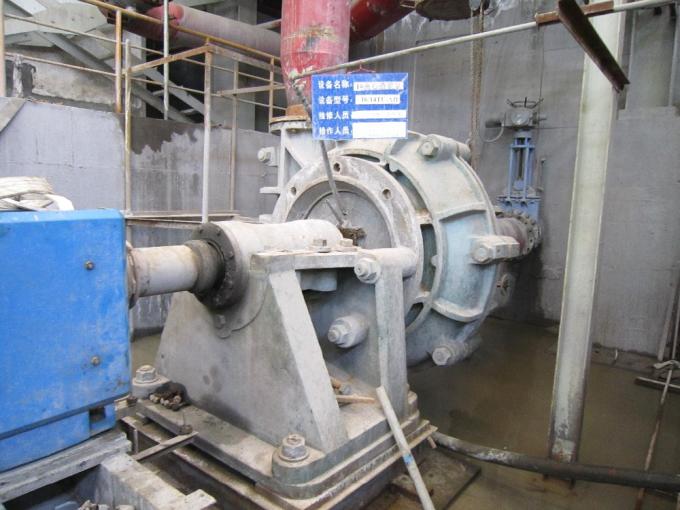

Application
